BROCHURE TECHNICAL INFORMATION
QR Code
Engine Perkins
Power 100 HP (74.5 kW)
Engine Volume 4400 cc
Bucket Breakout Force 7734 kgf
Tip Bucket Capacity 1.1 m³
Operating Weight 8.860 kg

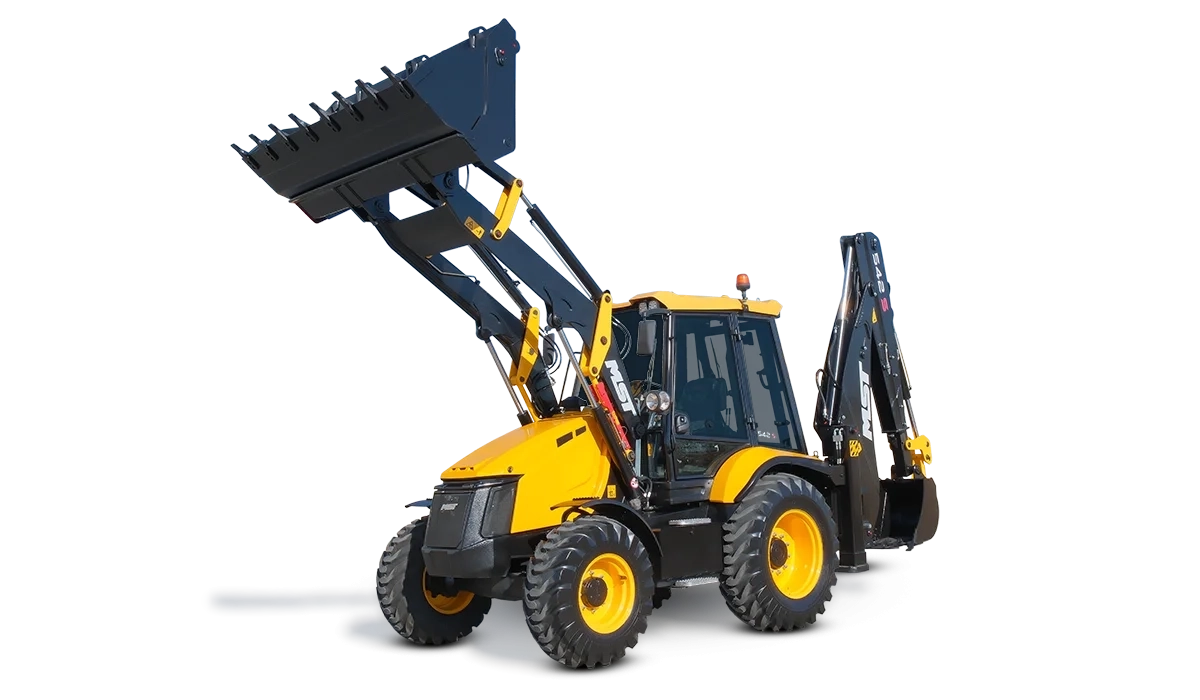

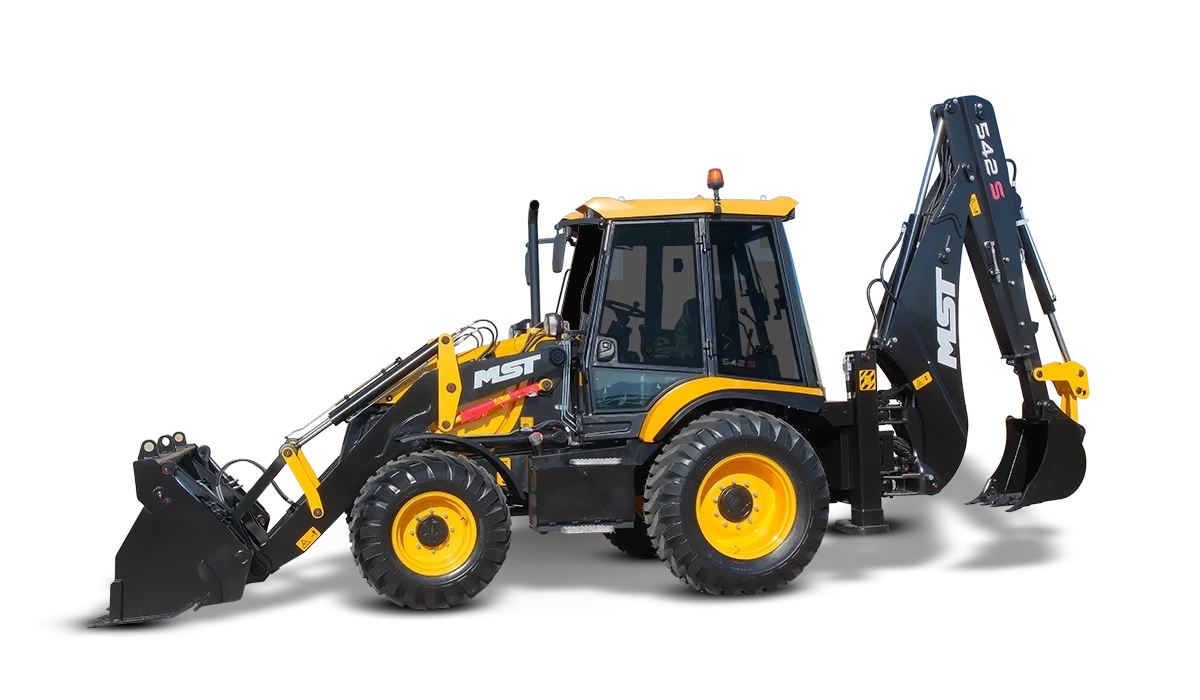

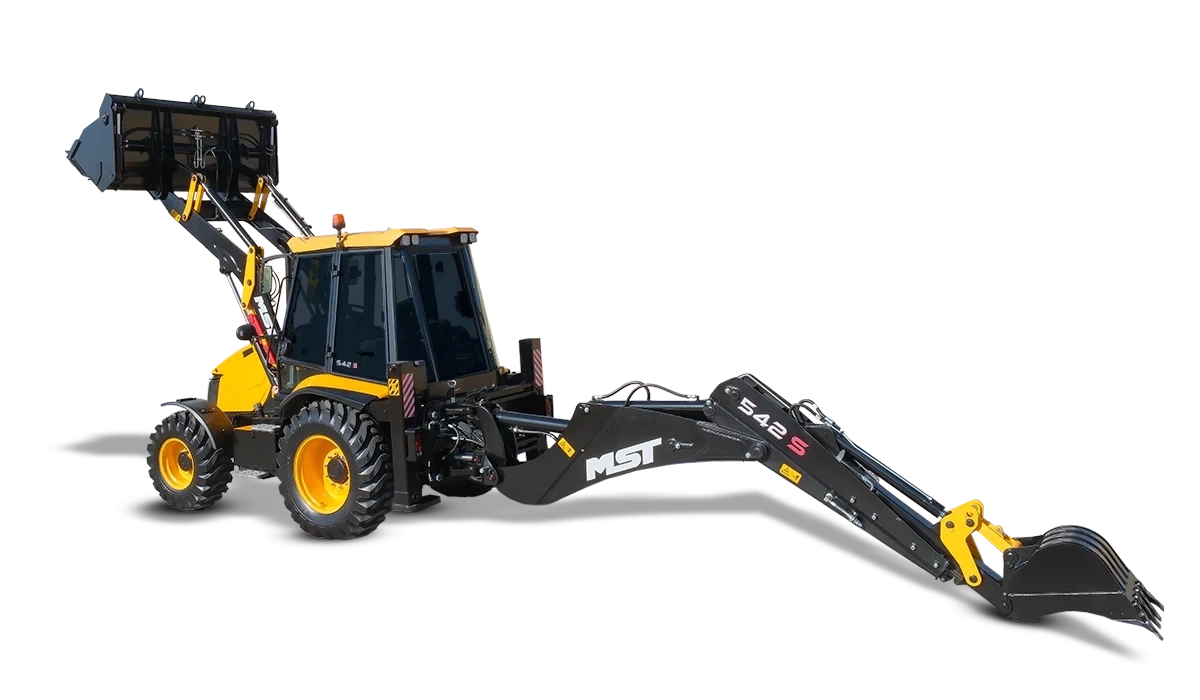

542S: Power Meets Comfort

Its optimized frame width and balanced design ensure stability, while precise bucket angles maximize operational control. The ergonomic layout and advanced maneuverability make the 542S the perfect choice for demanding tasks.

ENGINE
Brand PERKINS
Model 1104C-44T / 1104D-44TA
Type Diesel
Number of Cylinders 4
Bore & Stroke ø 105mm x 127mm
Displacement 4400 cc
Maximum Power 100 HP (74.5 kW) @ 2200 rpm
Maks. Torque 408Nm (1400 @ rpm) / 400Nm (1400 @ rpm)
Emission Class EU Stage II / Stage IIIA
TRANSMISSION
Heavy duty Powershift transmission
4 forward 4 reverse gears
Maximum travel speed 40 km/h
Hydraulic steering wheel system
Electrically controlled 2 wheel drive or 4 wheel drive
Torque converter with 2.64:1 stall ratio
Transmission oil cooler
AXLES
Heavy duty axles
Total 16° oscillation on the front axle
2 wheel drive or 4 wheel drive
Outboard planetary reduction
Differential lock on the rear axles
HYDRAULIC SYSTEM
Type Gear-type Pump Piston-type Pump
Total Flow Rate 145 L/min @ 2200 rpm 162.8 L/min @2200 rpm
Pressure 240 bar / 250 bar 240 bar / 250 bar
* Highly efficient tandem gear pump open centre hydraulic system (standard)
* Closed centre hydraulic system with optional variable flow rate piston pump and renewable flowsharing valves
WEIGHT
Operating Weight 8.860 kg (Telescopic Arm) / 8.580 kg (STD Arm)
BRAKES
Service Brake Rear axle input: Oil bath hydraulically controlled self adjusted multi-disc brakes; double brake pedal acting individually on the right and the wheels
Parking Brake Hand-lever controlled mechanical brake acting on rear axle differential
FILLING CAPACITIES
Engine Oil 8.5 L
Engine Cooling System Tier 2 22 L / 19 L
Fuel Tank 140 L
Transmission Oil 22 L
Hydraulic Oil Tank ~ Total System 62 L ~ 145 L
ELECTRICAL SYSTEM
Voltage 12 V
Battery 165 amp/h heavy duty
Alternator 120 A
TYRES
Front Tyres 405/70-20" 12PR
Rear Tyres 16.9-28" 14PR
LOADER PERFORMANCE
Tip Bucket Capacity 1.1 m³
Bucket Breakout Force 7734 kgf
Arm Breakout Force 5905 kgf
Lift Capacity at Maximum Height 3200 kg
BACKHOE PERFORMANCE TB ( Extended ) TB ( Retracted )
Backhoe Bucket Capacity 0.17 m³ 0.17 m³
Bucket Breakout Force 6424 kgf 6424 kgf
Arm Breakout Force 2506 kgf 3461 kgf
