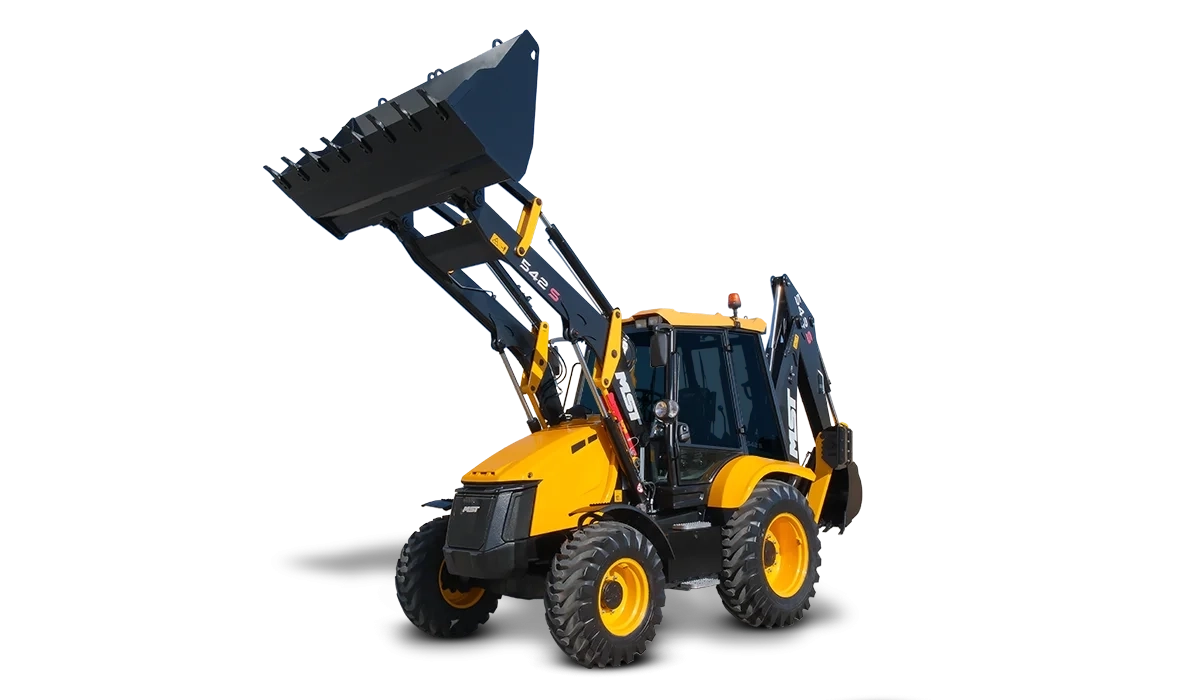

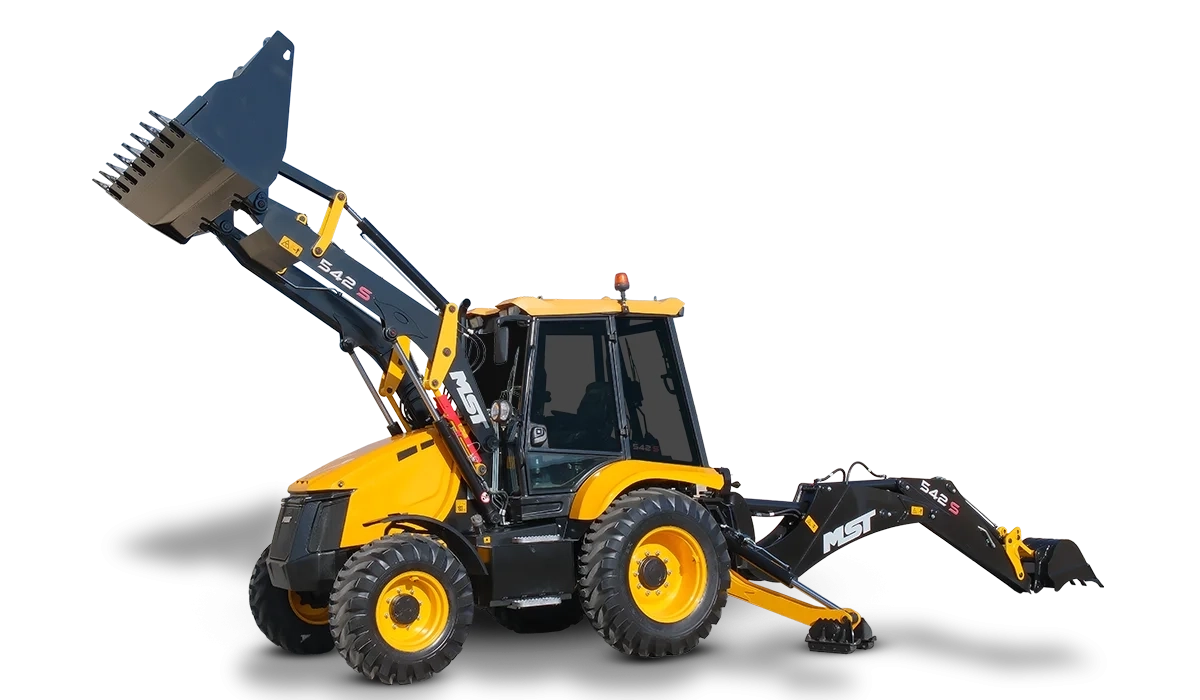

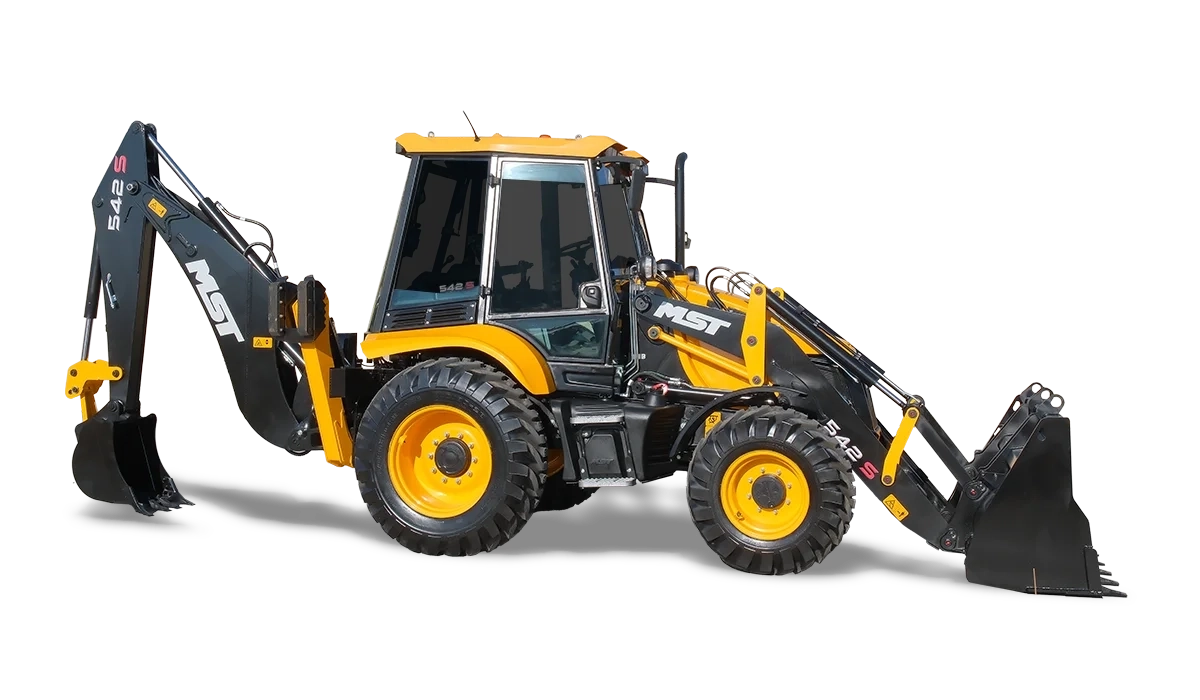

542-CM-backhoe-loader

QR Code
Engine Perkins
Power 100 HP (74.5 kW)
Engine Volume 4400 cc
Bucket Breakout Force 7734 kgf
Tip Bucket Capacity 1.1 m³
Operating Weight 9.300 kg

Strength Redefined, Comfort Enhanced

The MST 542S CM stands out with its optimized frame width and well-balanced structure, ensuring exceptional stability in every operation. Its precisely calibrated bucket angles enhance control and efficiency, while the ergonomic design and advanced maneuverability provide seamless handling, making it the ultimate solution for demanding work environments.

ENGINE
Brand PERKINS
Model 1104C-44T
Type Diesel
Number of Cylinders 4
Bore & Stroke ø 105mm x 127mm
Displacement 4400 cc
Maximum Power 100 HP (74.5 kW) @ 2200 rpm
Maks. Torque 408Nm (1400 @ rpm)
Emission Class EU Stage II/U.S. EPA Tier 2
TRANSMISSION
Heavy duty Powershift transmission
4 forward 4 reverse gears
Maximum travel speed 40 km/h
Hydraulic steering wheel system
Electrically controlled 2 wheel drive or 4 wheel drive
Torque converter with 2.64:1 stall ratio
Transmission oil cooler
AXLES
Heavy duty axles
Total 16° oscillation on the front axle
2 wheel drive or 4 wheel drive
Outboard planetary reduction
Differential lock on the rear axles
HYDRAULIC SYSTEM
Type Gear-type Pump Piston-type Pump
Total Flow Rate 145 L/min @ 2200 rpm 162.8 L/min @2200 rpm
Pressure 240 bar 240 bar
* Highly efficient tandem gear pump open centre hydraulic system (standard)
* Closed centre hydraulic system with optional variable flow rate piston pump and renewable flowsharing valves
WEIGHT
Operating Weight 8.540 kg (Telescopic Arm) / 8.240 kg (Std. Arm)
BRAKES
Service Brake Rear axle input: Oil bath hydraulically controlled self adjusted multi-disc brakes; double brake pedal acting individually on the right and the wheels
Parking Brake Hand-lever controlled mechanical brake acting on rear axle differential
FILLING CAPACITIES
Engine Oil 8.5 L
Engine Cooling System Tier 2 22 L
Fuel Tank 140 L
Transmission Oil 22 L
Hydraulic Oil Tank ~ Total System 62 L ~ 145 L
ELECTRICAL SYSTEM
Voltage 12 V
Battery 165 amp/h heavy duty
Alternator 120 A
TYRES
Front Tyres 405/70-20" 12PR
Rear Tyres 16.9-28" 14PR
LOADER PERFORMANCE
Tip Bucket Capacity 1.1 m³
Bucket Breakout Force 7734 kgf
Arm Breakout Force 5905 kgf
Lift Capacity at Maximum Height 3200 kg
BACKHOE PERFORMANCE TB ( Extended ) TB ( Retracted )
Backhoe Bucket Capacity 0.17 m³ 0.17 m³
Bucket Breakout Force 6424 kgf 6424 kgf
Arm Breakout Force 2506 kgf 3461 kgf
