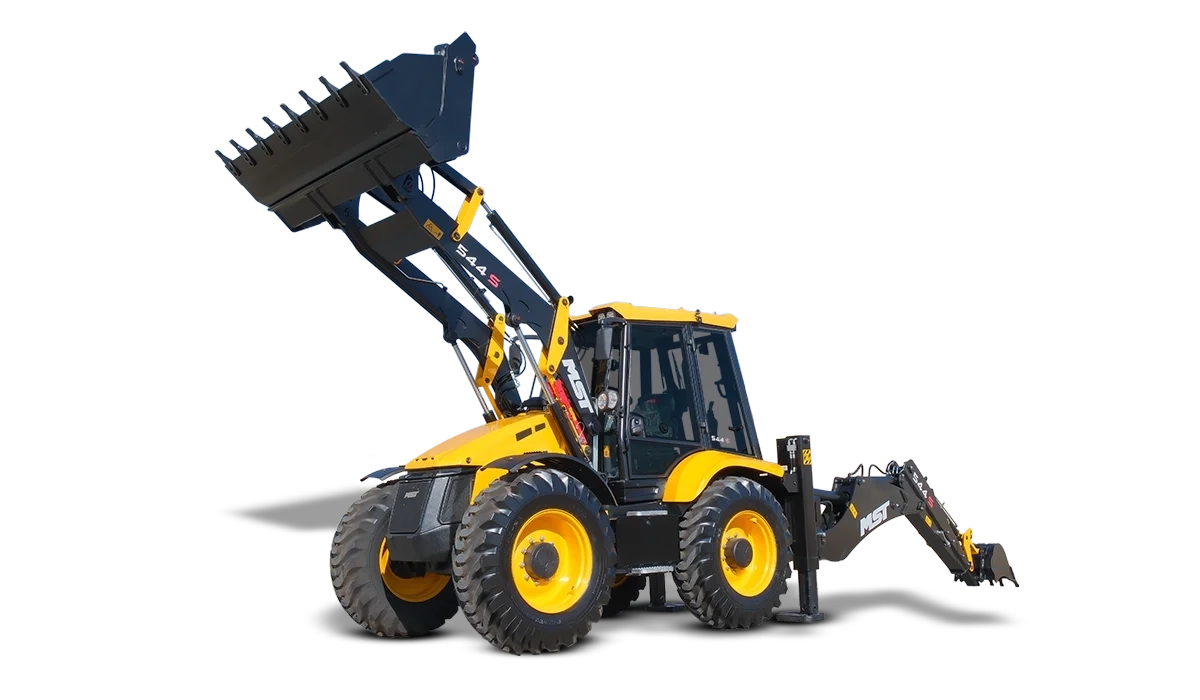

mst-544s-backhoe-loader

Brochure Download
QR Code
Engine Perkins
Power 100 HP (74.5 kW)
Engine Volume 4400 cc
Bucket Breakout Force 7734 kgf
Tip Bucket Capacity 1.1 m³
Operating Weight 9.300 kg

544S: Strength and Precision in One Machine

With its reinforced frame, superior bucket angles, and advanced hydraulic system, the 544S ensures unmatched maneuverability and productivity—making it the ultimate choice for high-performance applications.

ENGINE
Brand PERKINS
Model 1104C-44T / 1104D-44TA
Type Diesel
Number of Cylinders 4
Bore & Stroke ø 105mm x 127mm
Displacement 4400 cc
Maximum Power 100 HP (74.5 kW) @ 2200 rpm
Maks. Torque 408Nm (1400 @ rpm) / 400Nm (1400 @ rpm)
Emission Class EU Stage II / Stage IIIA
TRANSMISSION
Heavy duty Powershift transmission
4 forward 4 reverse gears
Maximum travel speed 40 km/h
Hydraulic steering wheel system
Electrically controlled 2 wheel drive or 4 wheel drive
Torque converter with 2.64:1 stall ratio
Transmission oil cooler
AXLES
Heavy duty axles
Total 16° oscillation on the front axle
2 wheel drive or 4 wheel drive
Outboard planetary reduction
LSD (Limited Slip Differantial) on rear axle
HYDRAULIC SYSTEM
Type Gear-type Pump Piston-type Pump
Total Flow Rate 145 L/min @ 2200 rpm 162.8 L/min @2200 rpm
Pressure 240 bar / 250 bar 240 bar / 250 bar
* Highly efficient tandem gear pump open centre hydraulic system (standard)
* Closed centre hydraulic system with optional variable flow rate piston pump and renewable flowsharing valves
WEIGHT
Operating Weight 9.300 kg (Telescopic Arm) / 9.020 kg (STD Arm)
BRAKES
Service Brake Rear axle input: Oil bath hydraulically controlled self adjusted multi-disc brakes; double brake pedal acting individually on the right and the wheels
Parking Brake Hand-lever controlled mechanical brake acting on rear axle differential
FILLING CAPACITIES
Engine Oil 8.5 L
Engine Cooling System Tier 2 22 L / 19 L
Fuel Tank 140 L
Transmission Oil 22 L
Hydraulic Oil Tank ~ Total System 62 L ~ 145 L
ELECTRICAL SYSTEM
Voltage 12 V
Battery 165 amp/h heavy duty
Alternator 120 A
TYRES
Front Tyres 16.9-28" 14PR
Rear Tyres 16.9-28" 14PR
LOADER PERFORMANCE
Tip Bucket Capacity 1.1 m³
Bucket Breakout Force 7734 kgf
Arm Breakout Force 5905 kgf
Lift Capacity at Maximum Height 3200 kg
BACKHOE PERFORMANCE TB ( Extended ) TB ( Retracted )
Backhoe Bucket Capacity 0.17 m³ 0.17 m³
Bucket Breakout Force 6424 kgf 6424 kgf
Arm Breakout Force 2506 kgf 3461 kgf
