Small Size and Agile

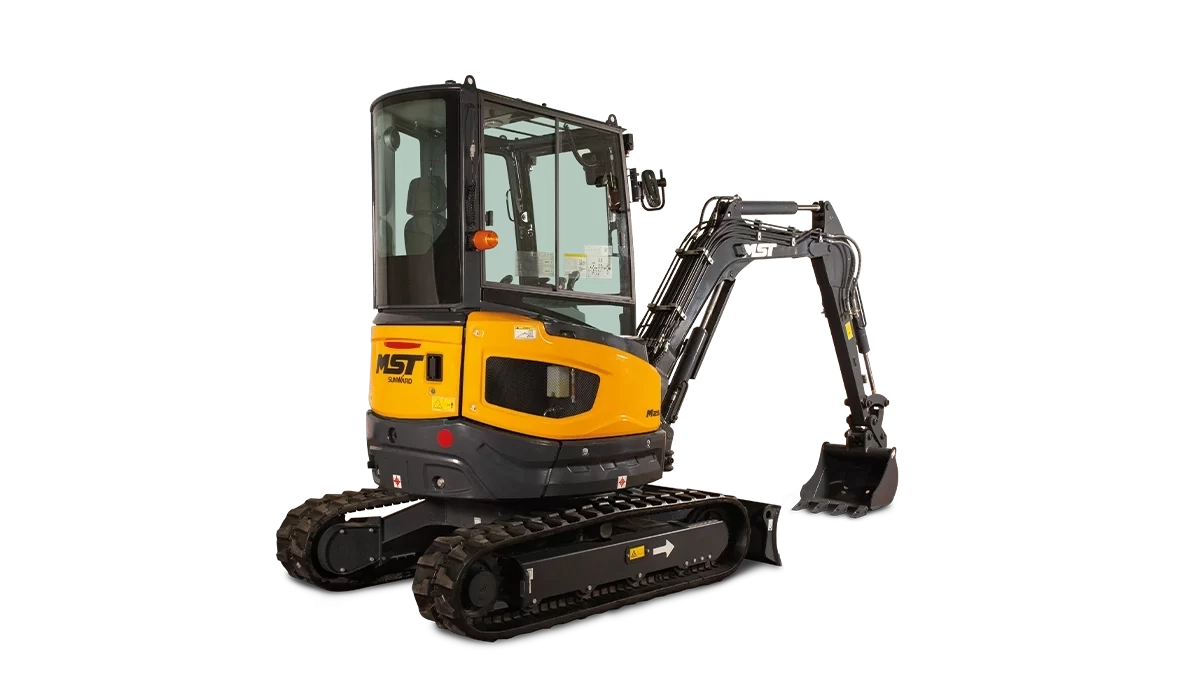

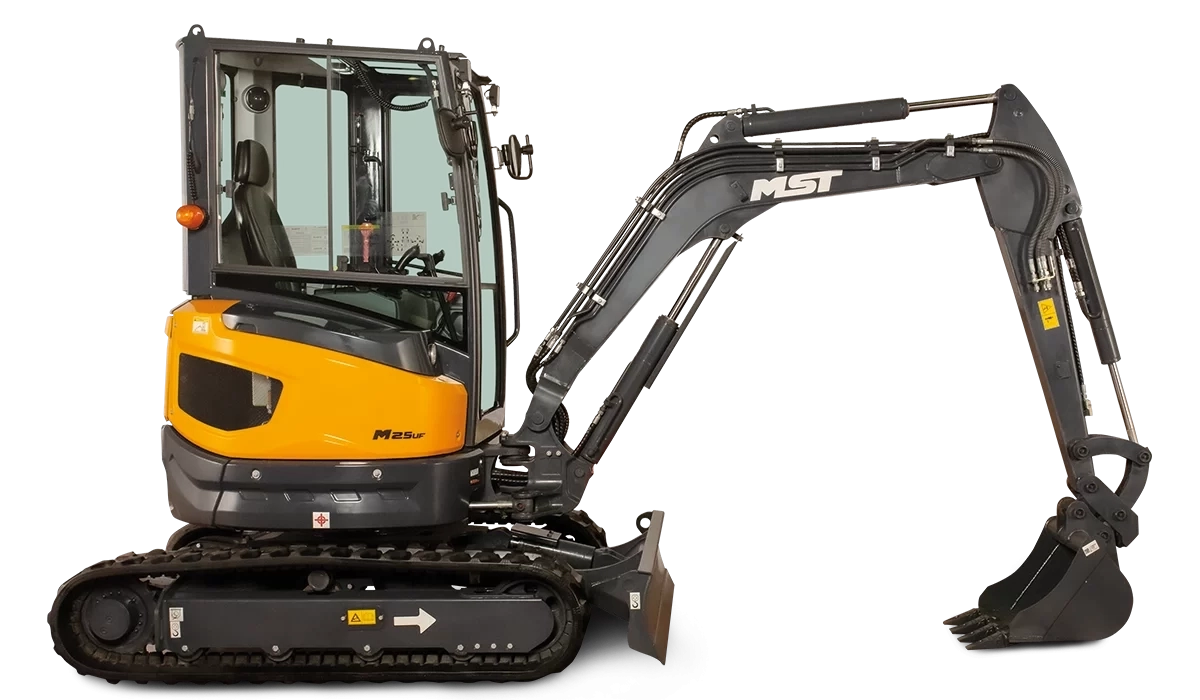

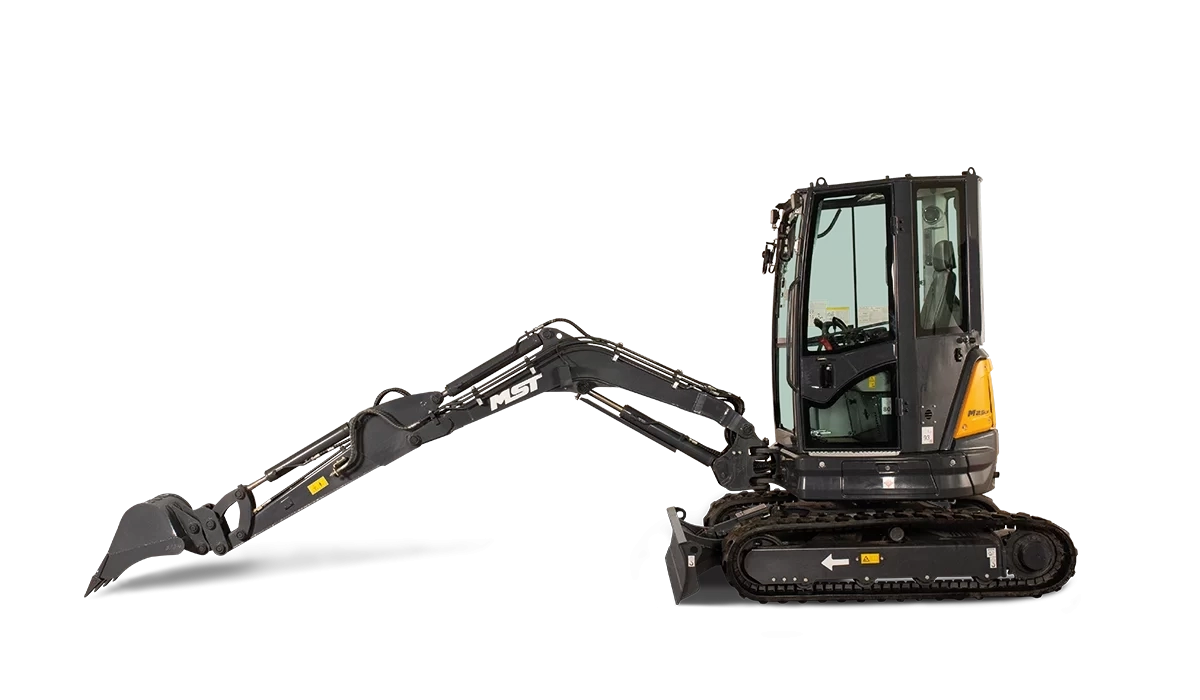

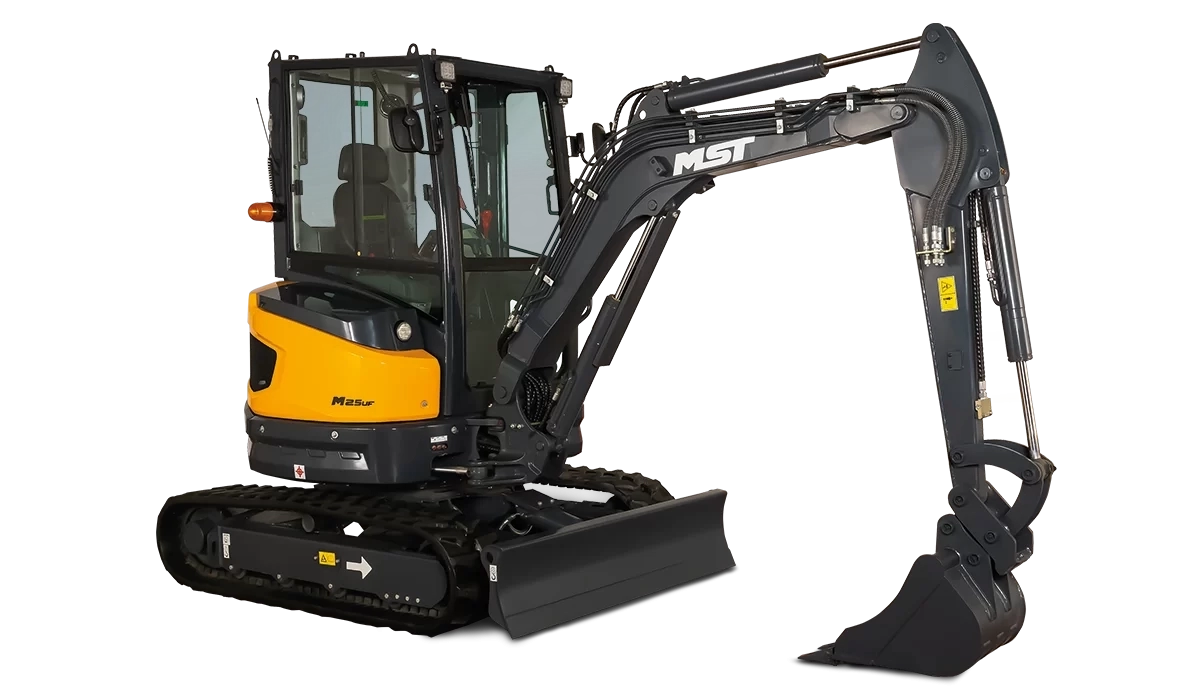

The small size and agility of the MST M25UF mini excavators increase their ability to move in tight spaces.
| ENGINE | |
| Brand | YANMAR |
| Model | 3TNV80F-SPSU |
| Type | In-line, 3-cylinder, liquid-cooled, mechanical pump |
| Emisyon Class | EU Stage V / U.S. EPA Tier 4 Final |
| Displacement | 1.1 L |
| Maksimum Power | 19.5 HP (14.6 kW) @ 2400 rpm |
| ATTACHMENTS | |
| Boom Length | 2.050 mm |
| Arm Length | 1.350 mm |
| Bucket Capacity | 0.08 m³ |
| Bucket Width | 580 mm |
| OPERATING WEIGHT | |
| 2.650 kg |
| GROUND PRESSURE | |
| 25.1 kPa |
| HYDRAULIC SYSTEM | |
| Main Pump | 2 variable displacement, axial piston pumps + 1 gear pump |
| Pump Capacity | 2 x 28.8 + 19.2 L/min |
| Maximum System Pressure | 215 bar |
| DOZER BLADE | |
| Width | 1.500 mm |
| Height | 325 mm |
| UNDERCARRIAGE | |
| Type | Rubber Track |
| Shoe Width | 300 mm |
| Number of Rollers | 3 |
| Carrier Roller | 1 |
| Gradeability | 30° |

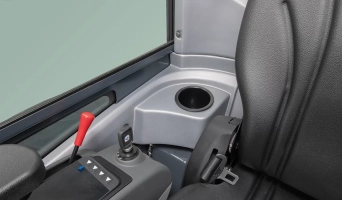

| CABIN | |
| FOPS | ✔ |
| TOPS | ✔ |

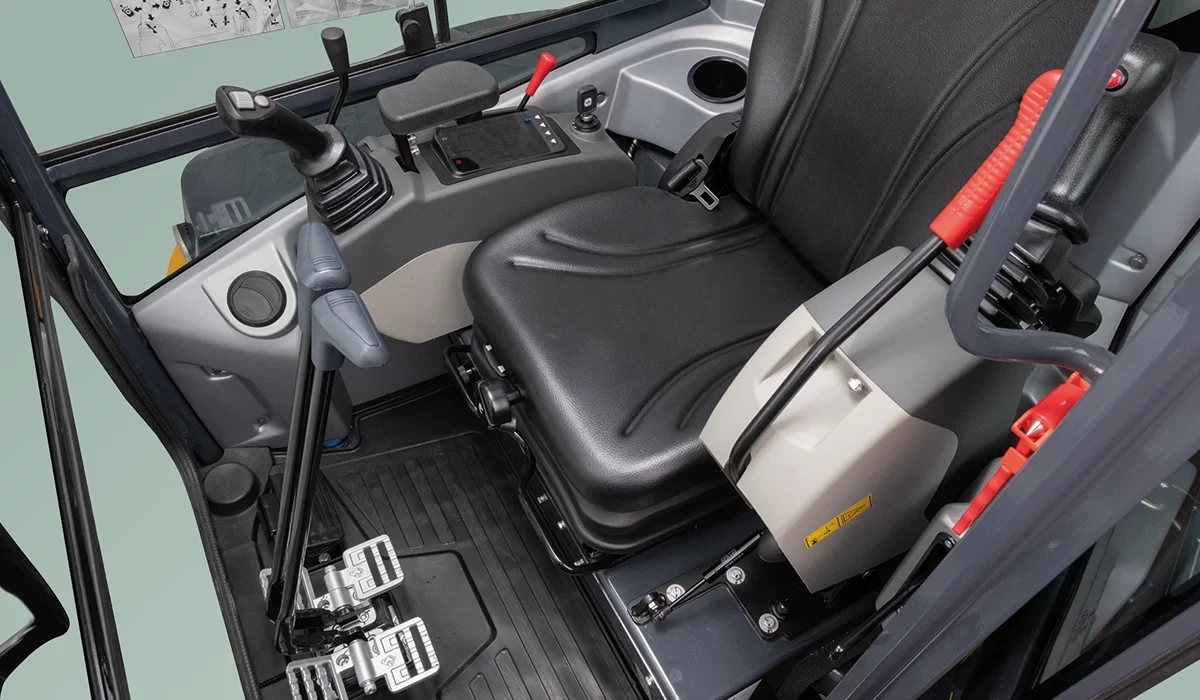

| Seat | Mechanical Suspension |
| Travel Alarm | ✔ |
| Led Lighting | ✔ |
| Seat Belt | ✔ |

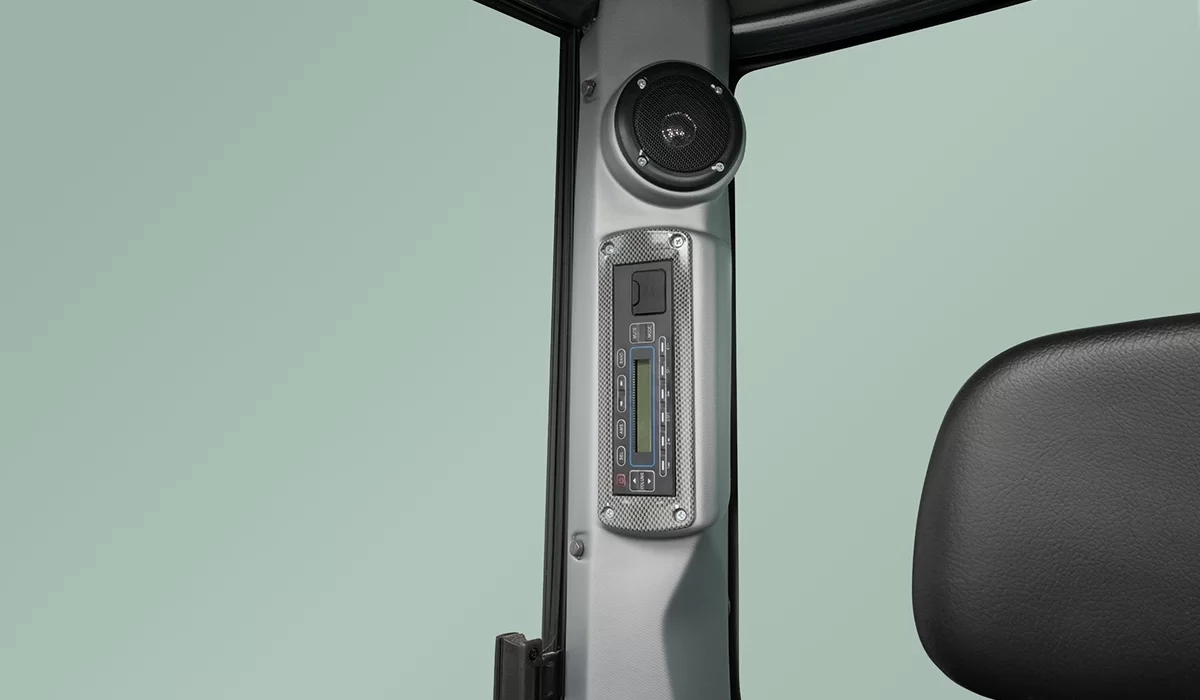

| Radio | ✔ |
| FEATURES | |
| Mechanical Quick Coupler | ✔ |
| Breaker Line | ✔ |
| Additional Hydraulic Line | ✔ |

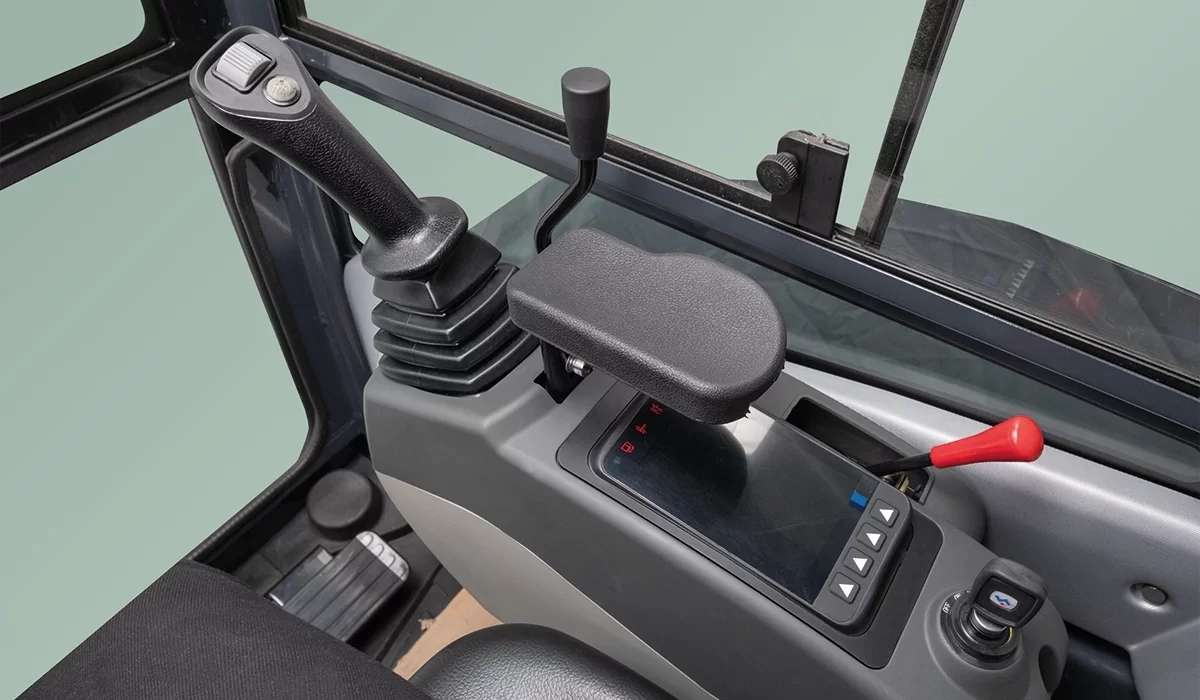

| Hydraulic Pilot Control Joystick | ✔ |
| PERFORMANCE | |
| Bucket Digging Force | 24 kN |
| Arm Crowding Force | 14 kN |
| Travel Speed | 2.6 / 4.4 km/h |
| Swing Motor | Piston Motor |
| Swing Brake | Hydraulic Brake Type |
| Swing Speed | 9.0 rpm |
| CAPACITIES | |
| Fuel Tank | 26 L |
| Hydraulic Tank | 24 L |

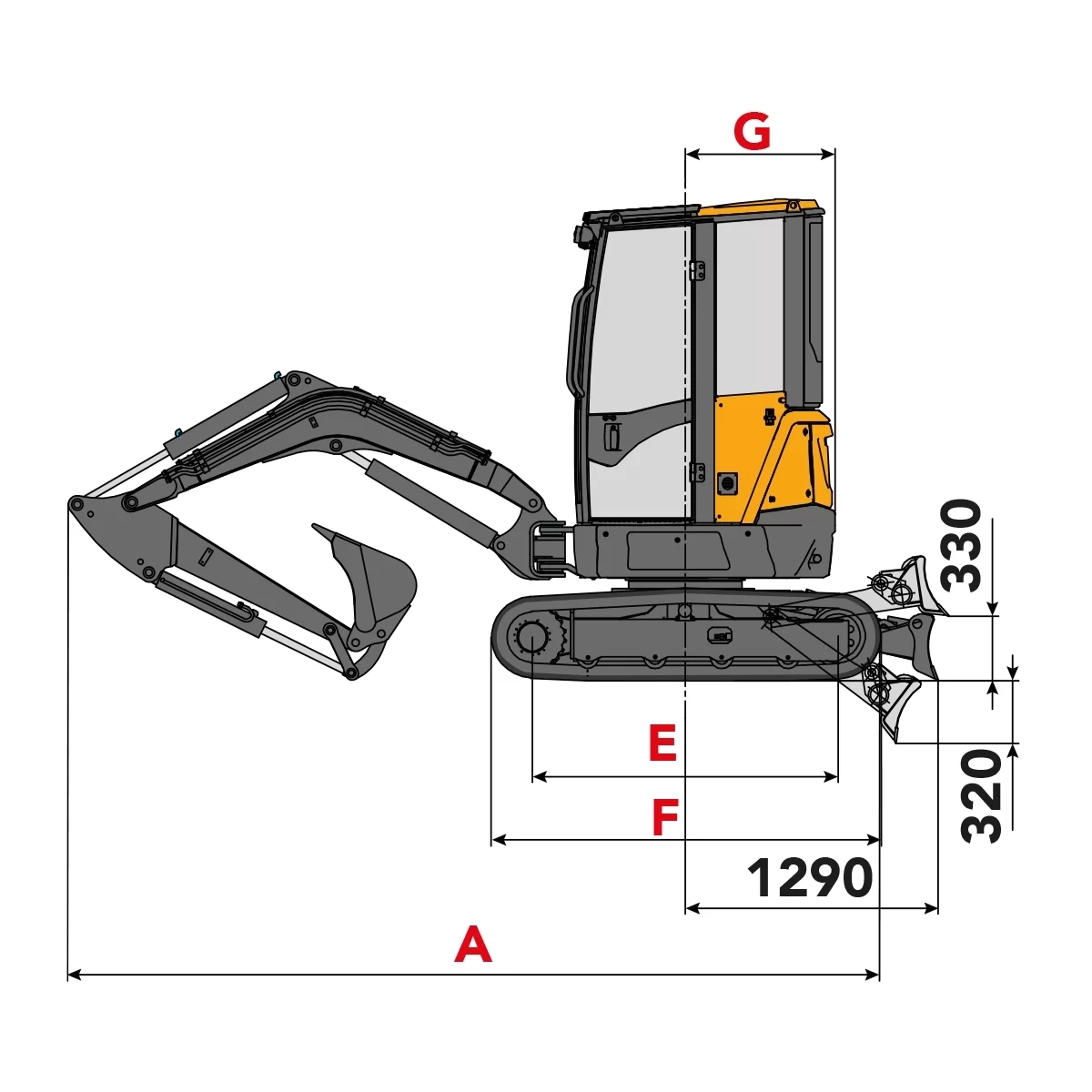

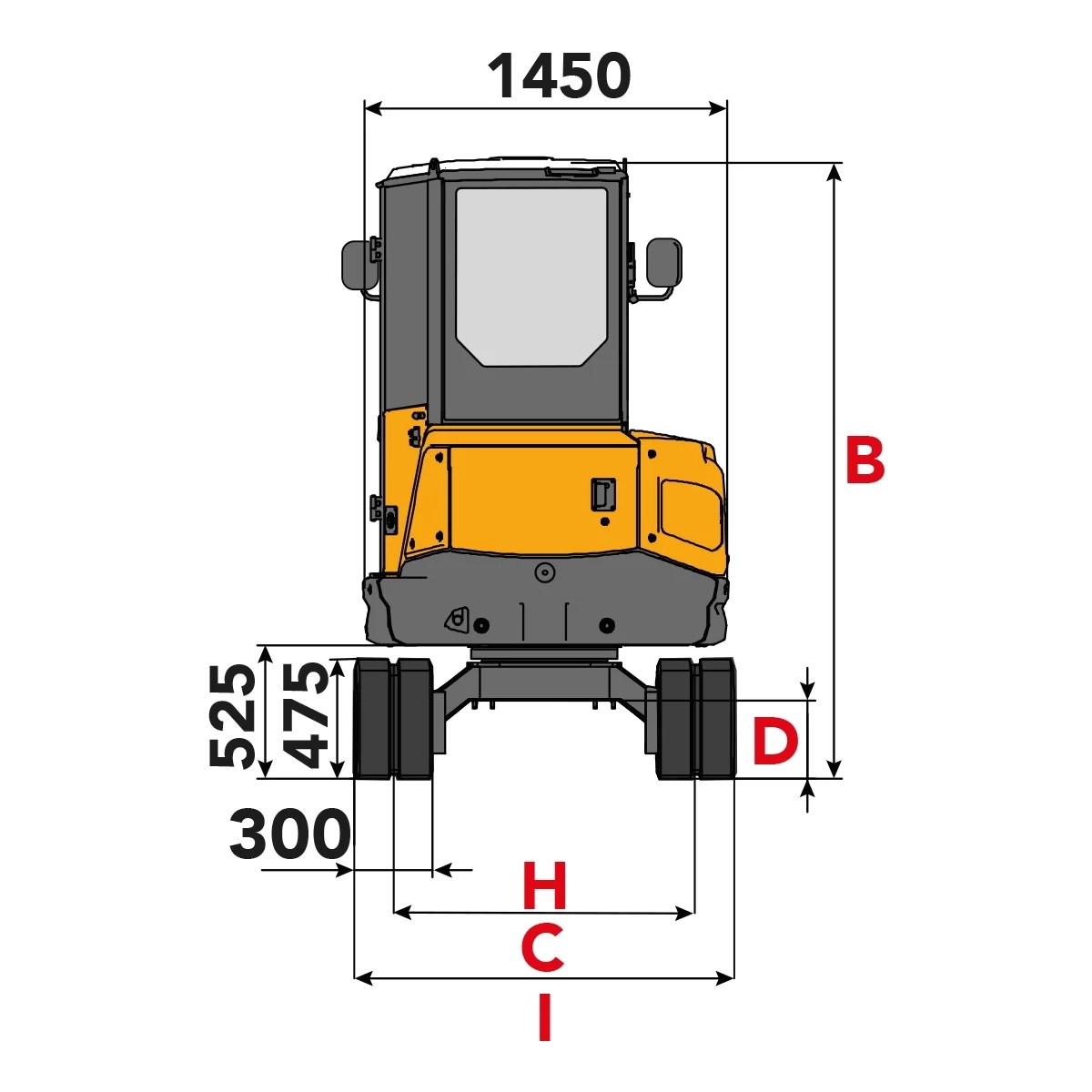

| GENERAL DIMENSIONS | |
| A-Transport Length | 4.140 mm |
| B-Transport Height | 2.455 mm |
| C-Transport Width | 1.500 mm |
| D-Ground Clearance | 310 mm |
| E-Track Length on Ground | 1.560 mm |
| F-Track Length | 1.990 mm |
| G-Turning Radius Rear | 765 mm |
| H-Track Width | 1.200 mm |
| I-Track Gauge | 1.500 mm |

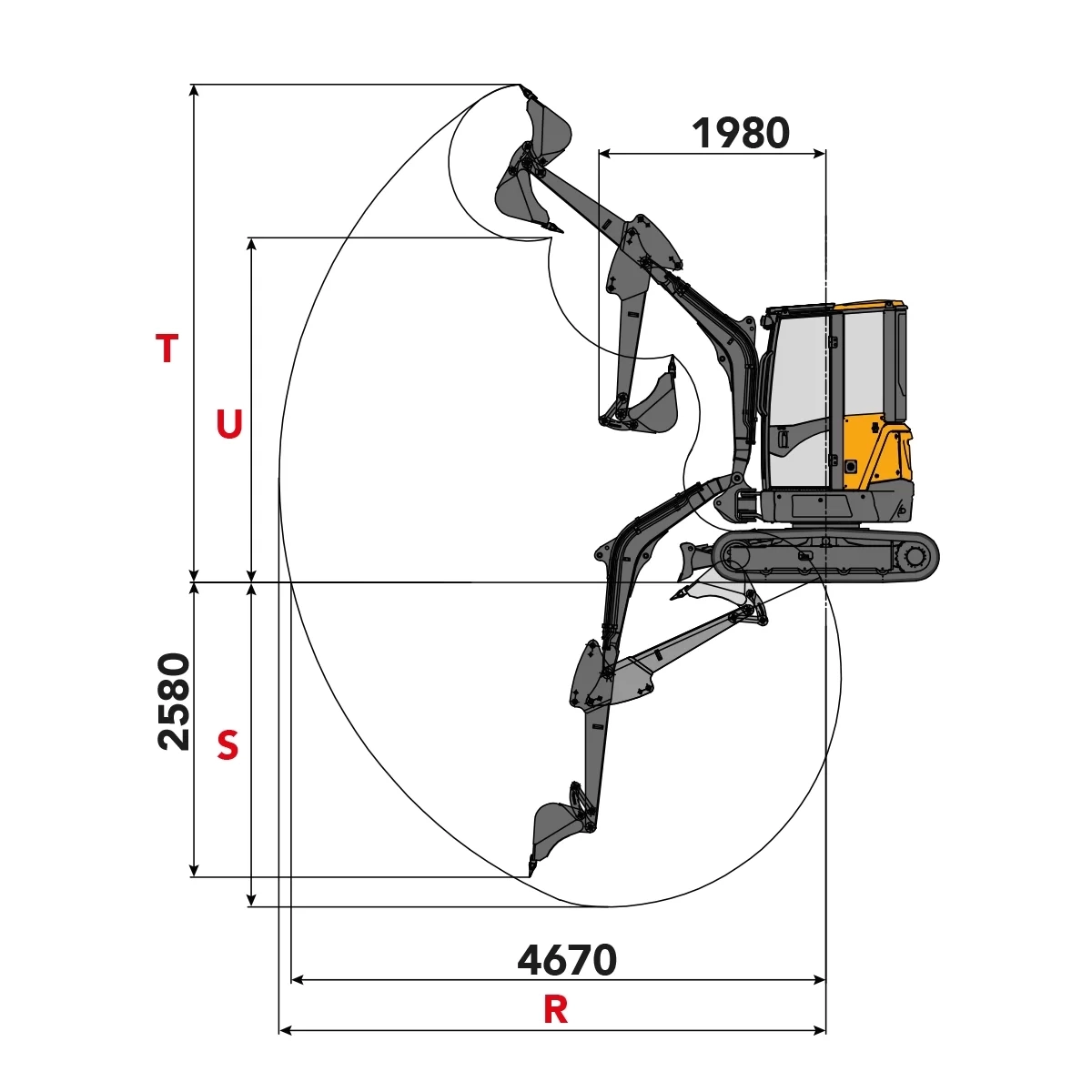

| WORKING DIMENSIONS | |
| R-Maximum Reach | 4.775 mm |
| S-Maximum Digging Depth | 2.840 mm |
| T-Maximum Reach Height | 4.355 mm |
| U-Maximum Loading Height | 3.010 mm |
| Boom Swing Angle (Right/Left) | 65° / 50° |
