Small Space & Large Work

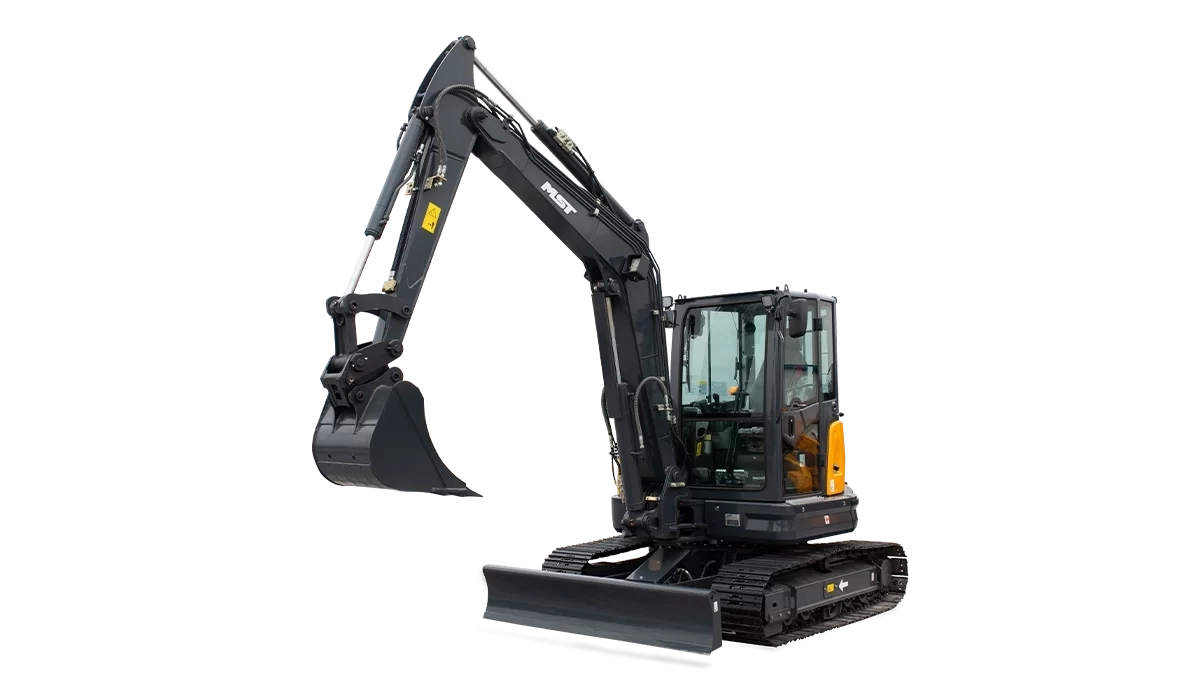

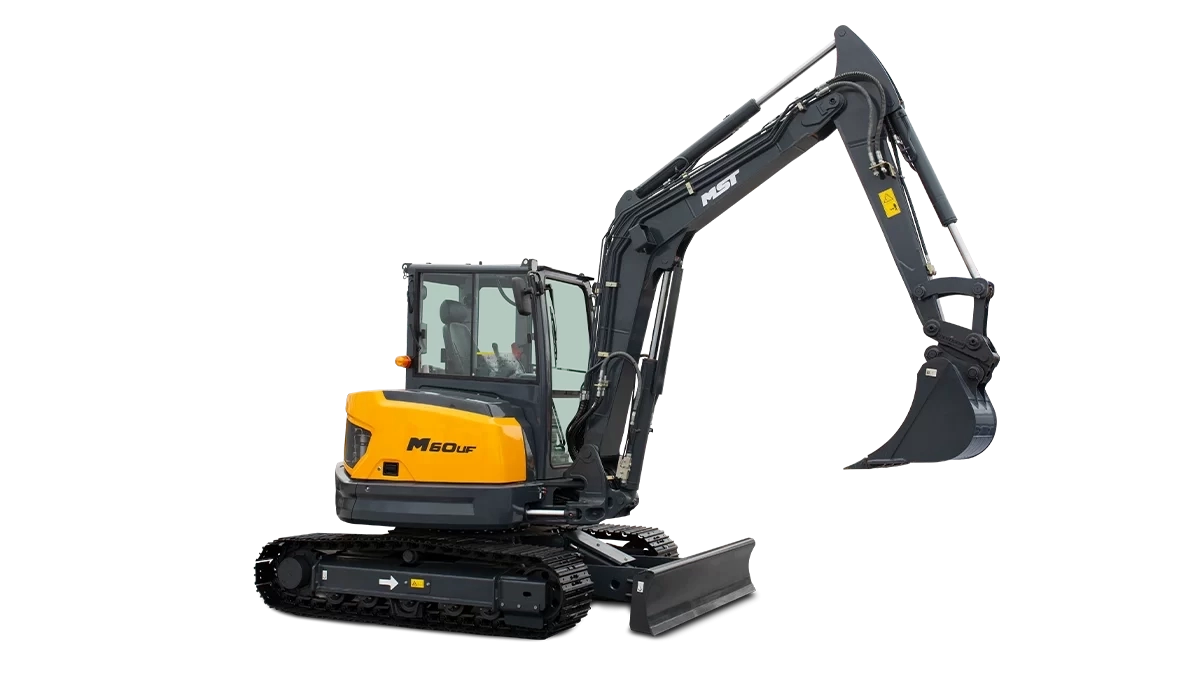

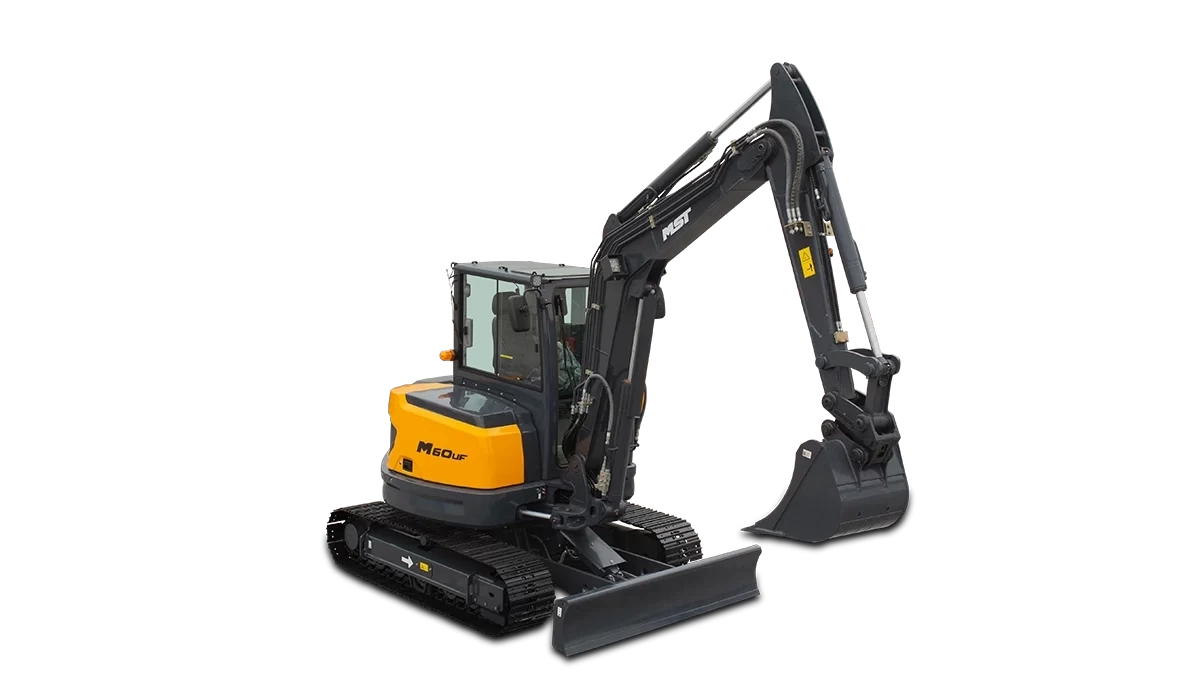

MST M60UF mini excavators enable large-scale works in small spaces with their small size and agility.
| ENGINE | |
| Brand | KUBOTA |
| Model | V2607-CR-EW52 |
| Type | In-line, 4 Cylinder, Liquid-cooled |
| Emission Class | EU Stage V / U.S. EPA Tier 4 Final |
| Cylinder Volume | 2.61 L |
| Maximum Power | 47.5 HP (35 kW) @ 2.300 rpm |
| ATTACHMENTS | |
| Boom Length | 2.900 mm |
| Arm Length | 1.600 mm |
| Bucket Capacity | 0.18 m³ |
| Bucket Width | 680 mm |
| OPERATING WEIGHT | |
| 5.770 kg |
| GROUND PRESSURE | |
| 33.87 kPa |
| HYDRAULIC SYSTEM | |
| Main Pump | 2 variable displacement, axial piston pumps + 1 gear pump |
| Pump Capacity | 2 x 59 + 42 L/min |
| Maximum System Pressure | 245 bar |

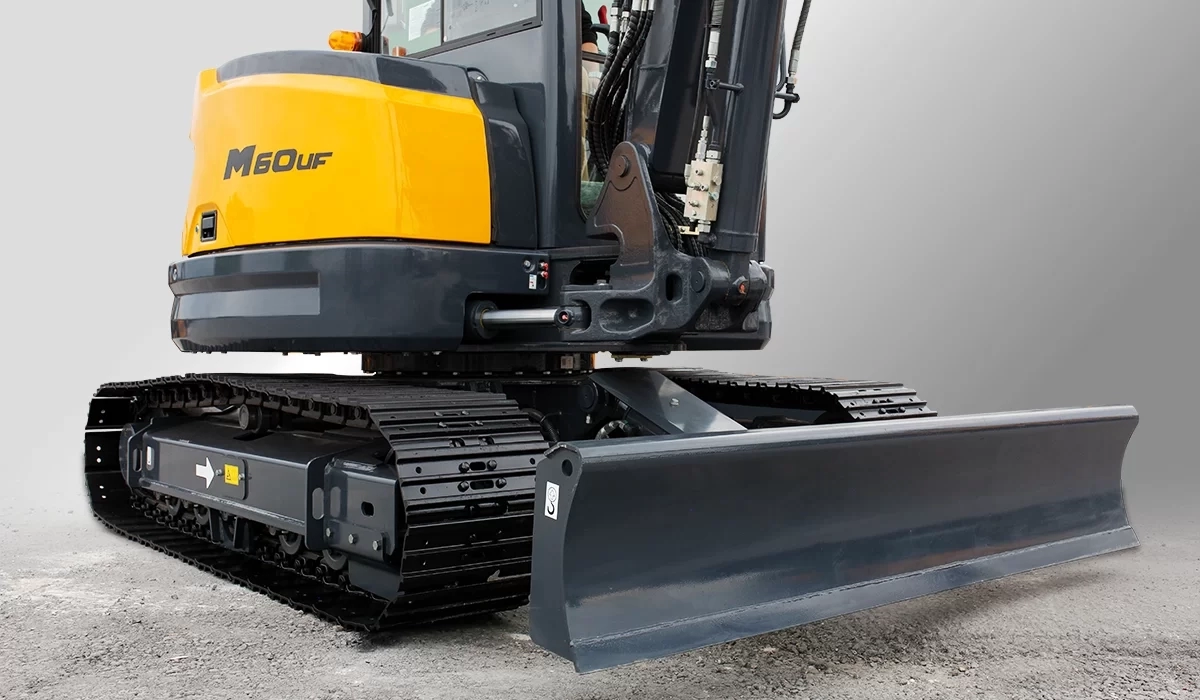

| BULLDOZER BLADE | |
| Width | 1.960 mm |
| Height | 390 mm |

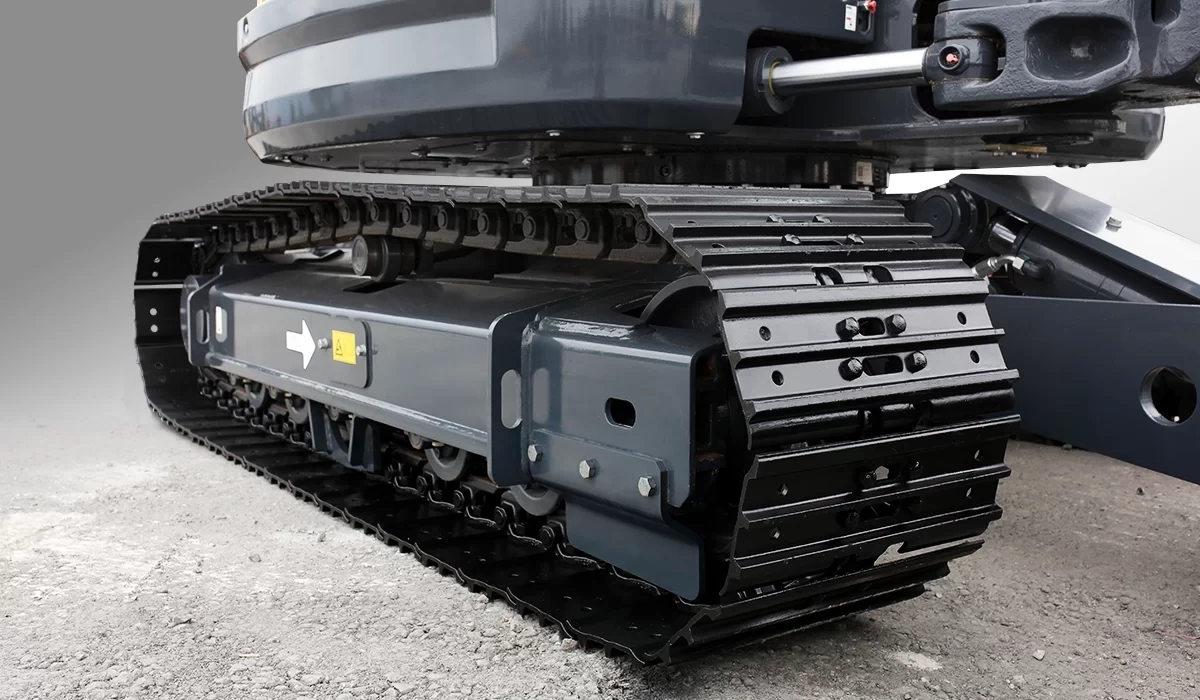

| UNDERCARRIAGE | |
| Type | Rubber Track |
| Shoe Width | 400 mm |
| Number of Rollers | 5 |
| Carrier Roller | 1 |
| Gradeability | 35° |

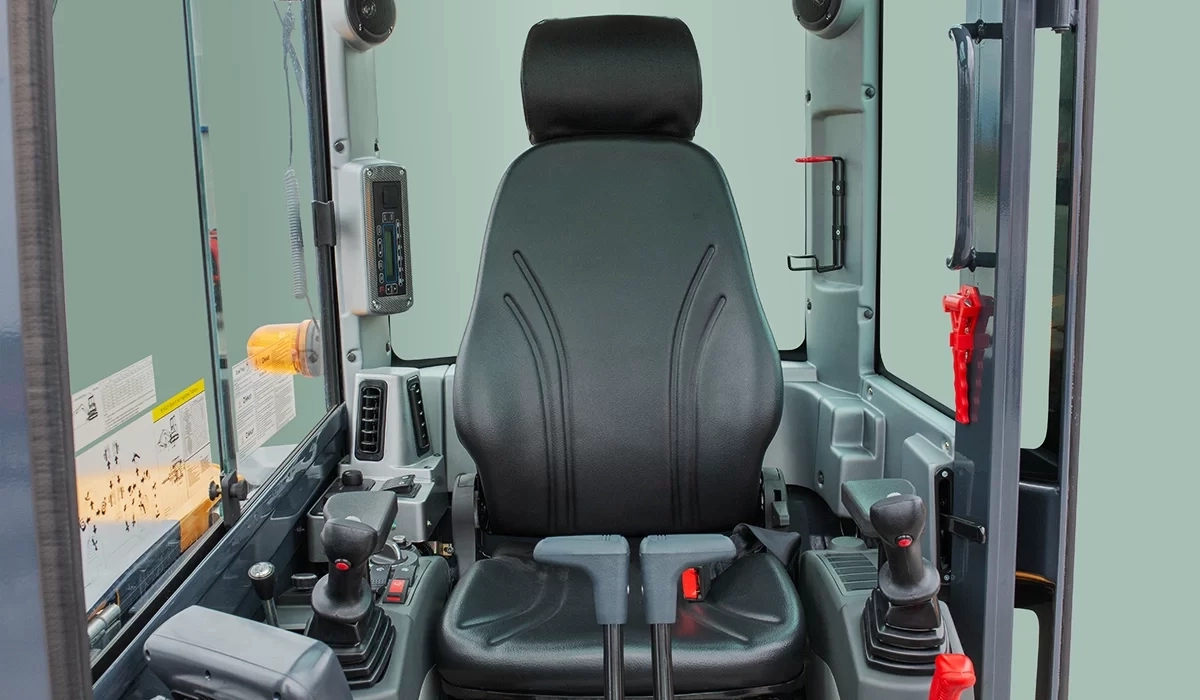

| CABIN | |
| FOPS | ✔ |
| TOPS | ✔ |
| Seat | Mechanical Suspension |
| Air Conditioning | ✔ |
| Travel Alarm | ✔ |
| Led Lighting | ✔ |
| Seat Belt | ✔ |
| Radio | ✔ |
| FEATURES | |
| Mechanical Quick Coupler | ✔ |
| Breaker Line | ✔ |
| Additional Hydraulic Line | ✔ |

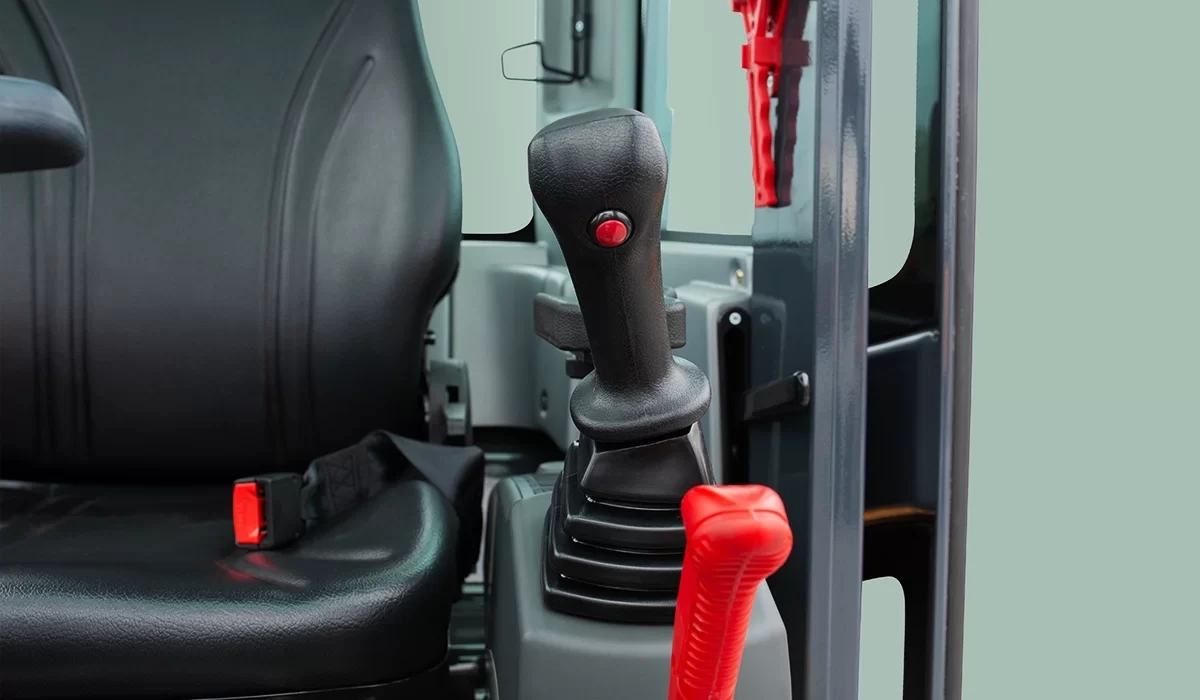

| Hydraulic Pilot Control Joystick | ✔ |
| Boom Safety Valve | ✔ |
| Arm Safety Valve | ✔ |
| PERFORMANCE | |
| Bucket Digging Force | 46.8 kN |
| Arm Crowding Force | 31.1 kN |
| Travel Speed | 2.4 / 4.0 km/h |
| Swing Motor | Piston Motor |
| Swing Brake | Hydraulic Brake Type |
| Swing Speed | 9.4 rpm |
| CAPACITIES | |
| Fuel Tank | 70 L |
| Hydraulic Tank | 70 L |

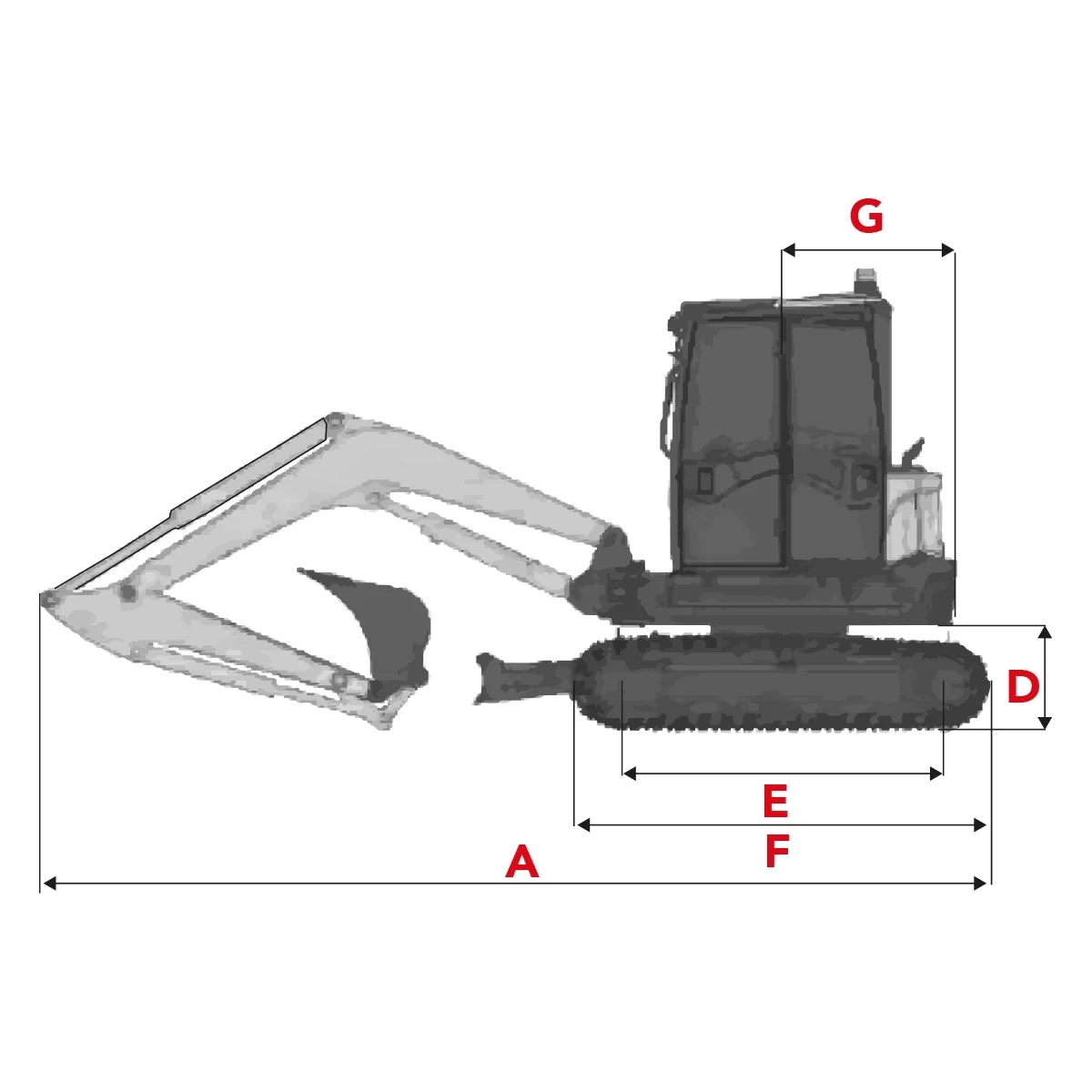

| GENERAL DIMENSIONS | |
| A-Transport Length | 5.500 mm |
| B-Transport Height | 1.980 mm |
| C-Transport Width | 2.550 mm |
| D-Ground Clearance | 640 mm |
| E-Track Length on Ground | 1.965 mm |
| F-Track Length | 2.490 mm |
| G-Swing Radius Rear | 1.050 mm |
| H-Track Roller Center Distance | 1.580 mm |
| I-Track Gauge | 1.980 mm |
| WORKING DIMENSIONS | |
| R-Maximum Reach | 6.235 mm |
| S-Maximum Digging Depth | 3.710 mm |
| T-Maximum Reach Height | 5.610 mm |
| U-Maximum Loading Height | 3.950 mm |
| Boom Swing Angle (Right/Left) | 70° / 50° |
