Engine
PERKINS 904J-E36TA @ Commonrail
Cubic Capacity
3621 ccm
No. Of Cylinders
4
Engine Torque
500Nm@1500rpm
Gearbox Speed
4/3
Emission
Stage 5

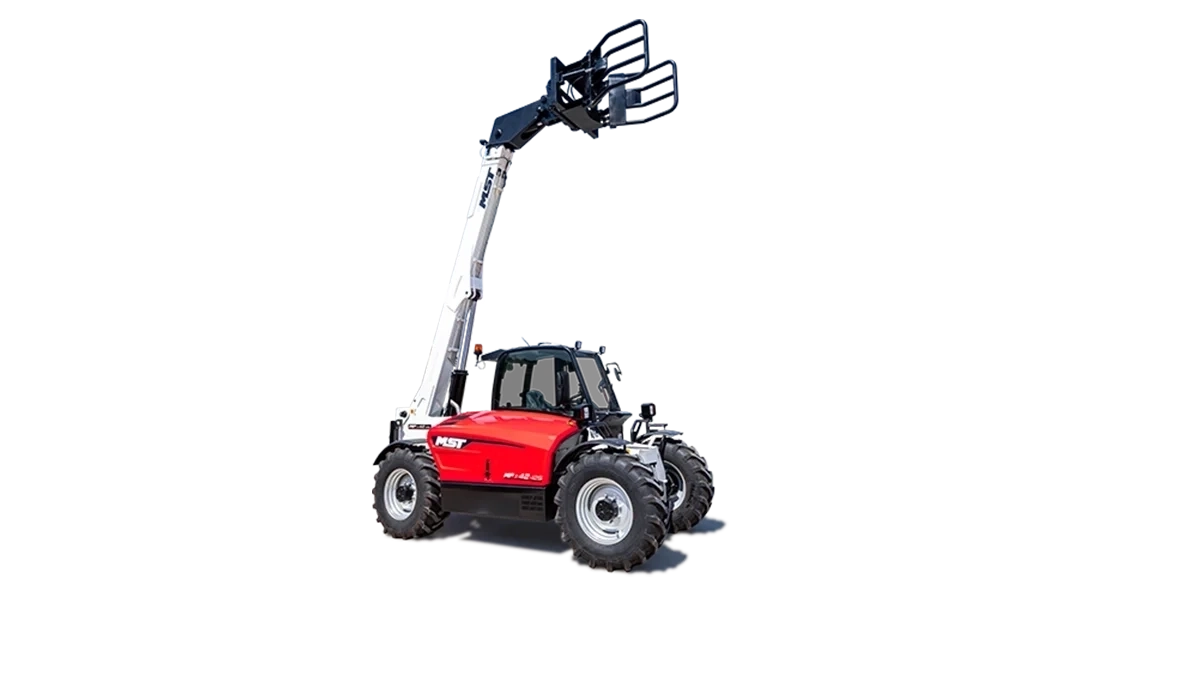

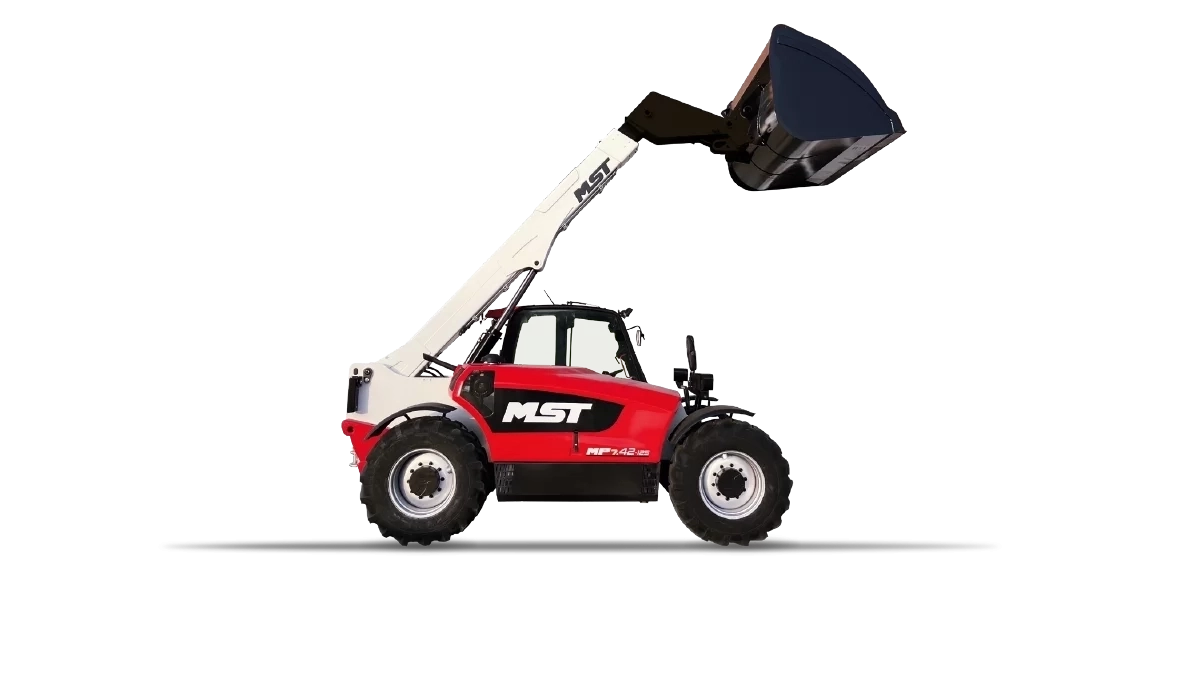

MST Telescopic Handler consisting of advanced technology and world-recognised components.
| ENGINE | |
| Brand & Model | PERKINS 904J-E36TA @ Commonrail |
| Emission | Stage 5 |
| No. Of Cylinders | 4 |
| Cubic Capacity | 3621 ccm |
| Engine Power | 120 hp / 90kW @2300rpm |
| Engine Torque | 500Nm@1500rpm |
| Combustion System | Commonrail with direct injection @ Turbocharged aftercooler |
| Cooling | Water cooled |
| TRANSMISSION | |
| Type of Transmission | Powershift with tork convertor |
| Gearbox Speed (Forward/Reverse) | 4/3 |
| Max. Travelling Speed | 34 km/h |
| Steering Modes | 2 WS, 4WS, 4WS-Crab |
| HYDRAULIC SYSTEM | |
| Hydraulic Pump | Load sensing type variable piston pump |
| Main Control Valve | Electro-hydraulic control |
| Max. Flow | 140 l/min |
| System Pressure | 250 bar |
| Joystic Control | 7 in 1 @ FNR & Gear up-down shift |
| FLUID CAPACITIES | |
| Fuel Tank | 160 l |
| Hydraulic Tank | 130 l |
| Standart Machine Operating Weight | 9.100 kg |
| BOOM CYCLE TIMES | |
| Lifting | 9.90 sn |
| Lowering | 7.70 sn |
| Extension | 6.80 sn |
| Retraction | 4.80 sn |
| Crowd | 3.80 sn |
| Dump | 3.80 sn |
| PERFORMANCE | |
| Model Family | 7 M |
| Max Lifting Capacity (kg) | 4200 kg |
| Max Lifting Capacity at Max Height | 3000 kg |
| Capacity at Max Forward Reach | 1600 kg |
| Max Lifting Height | 7.37 m |
| Max Forward Reach | 4.07 m |
| Max. Towable Trailer Weight (kg) (With/Without Brake)*** |
3000-14000 kg |
| AXLES, BRAKE SYSTEM and TYRES | |
| Axles | LSD type rigid front axle & swinging type rear axle |
| Brake System | Front / Rearr multi- disc type Brake System oil bath & with inching |
| Parking Emergency Brake | Negative parking brake (SAHR) |
| Tires | 460/70-24 |
| NOISE | |
| Noise at Driving Position LpA* | 80 db(A) |
| Noise to Environment LwA* | 102 db(A) |
| DIMENSIONS | |

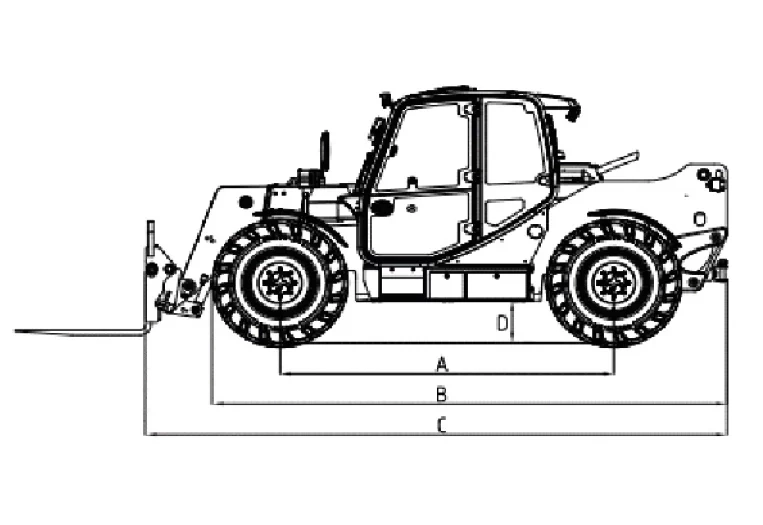

| A-Wheelbase | 3075 mm |
| B-Overall Lenght To Front Face of Tyres | 4786 mm |
| C-Overall Lenght To Carriage | 5413 mm |
| D-Ground Clearance | 400 mm |

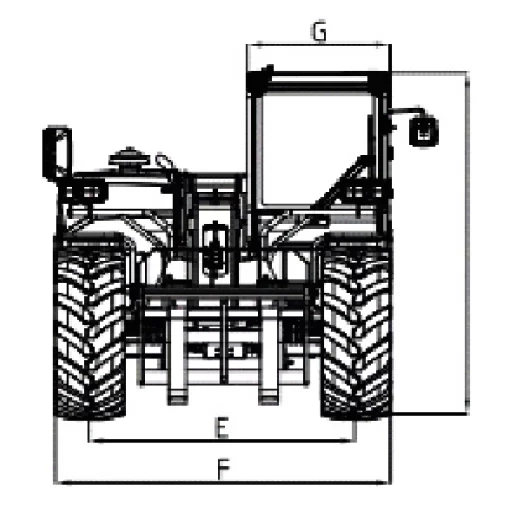

| E-Inside Tyre Width | 1830 mm |
| F-Overall Width | 2290 mm |
| G-Overall Cab Width | 971 mm |
| H-Overall Height | 2590 mm |
| I-Tow Bar | --- |

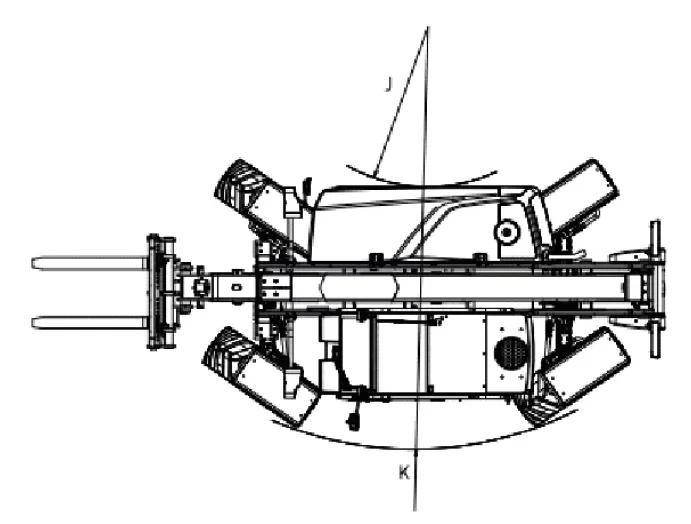

| J- Turning Radius (Engine Hood) | 1600 mm |
| K- Turning Radius (Over Tires) | 4070 mm |
| Standard Forks *** | 120 x 50 x 1200 mm |
